Bendix 284726N PP‑1 Push‑Pull Valve Kit, 40 PSI Automatic Release Part Number: 060-284726N

Not Yet Rated | Write the First Review

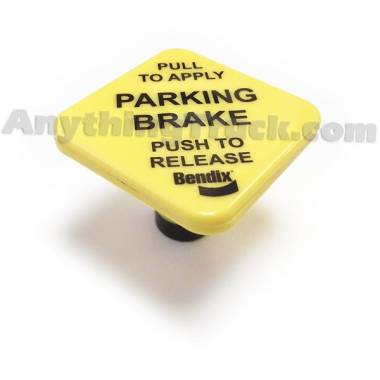

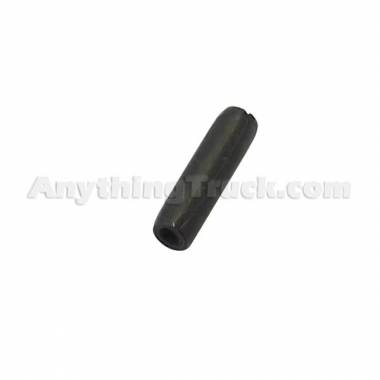

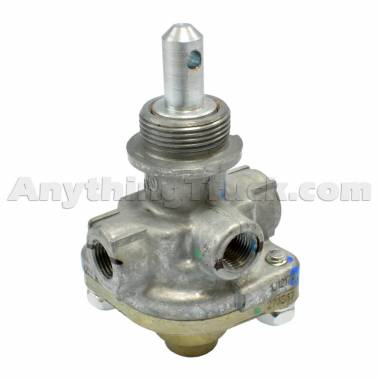

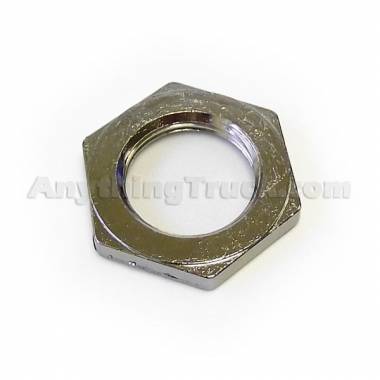

The Bendix 284726N kit includes a new PP‑1 push‑pull valve (276567) with a 40 PSI automatic release setting, along with a yellow parking‑brake button, roll pin, and mounting nut. This variant features 1/8" NPT supply, delivery, and exhaust ports and is commonly used for parking and emergency brake control applications.

Special Notes

Includes valve, yellow button, roll pin, and mounting nut.

Product Description

Manufacturer: Bendix

Part Number: 284726N

Condition: New

Valve Type: PP‑1 Push‑Pull Control Valve Kit

Automatic Release Pressure: 40 PSI

Included Valve: Bendix 276567

Supply Port: 1/8" NPT

Delivery Ports: 1/8" NPT (2)

Exhaust Port: 1/8" NPT

Plunger Diameter: 0.374"

Plunger/Button Height: 1.59"

Button Included: Yes

Button Color: Yellow with Black Band

Button Shape: Diamond

Button Text: Pull to Apply | Parking Brake | Push to Release

Mounting Nut Included: Yes

Rubber Boot Included: No

Dial Included: No

Mounting Thread: 7/8‑20 UNEF‑2A

The Bendix PP‑1 valve is a manually operated, push‑pull on/off air control valve with an exhaust function. It is pressure‑sensitive and automatically returns to the exhaust (button out) position when supply pressure falls below its calibrated minimum. When pressure is above the required threshold, the valve may be manually operated to either position. PP‑1 valves are commonly used for parking and emergency brake control and were also used with TP‑2 tractor protection valves in pre‑FMVSS‑121 single‑circuit tractor systems.

Cross References: 284726, 284726N, 060-284726N, 276567, 8113418, 49900041, 21339532, 2306994, 25061200188, 5107563, D2HS2A062BA, D2HS2A622BA, D2HSBA622BA, 825687, 10130547, 15572831, 5300758001, 78113418, 86883028, KN20021, 459876, 479301440A, K-295-97, K29597, 794167C1, S-A562, SA562, 15572831, 5JA569, 90007281, 1736602, 801063, 284726BXW, 54233031P, 440338, 61130317, 1576016, V1576016, 1201036
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
