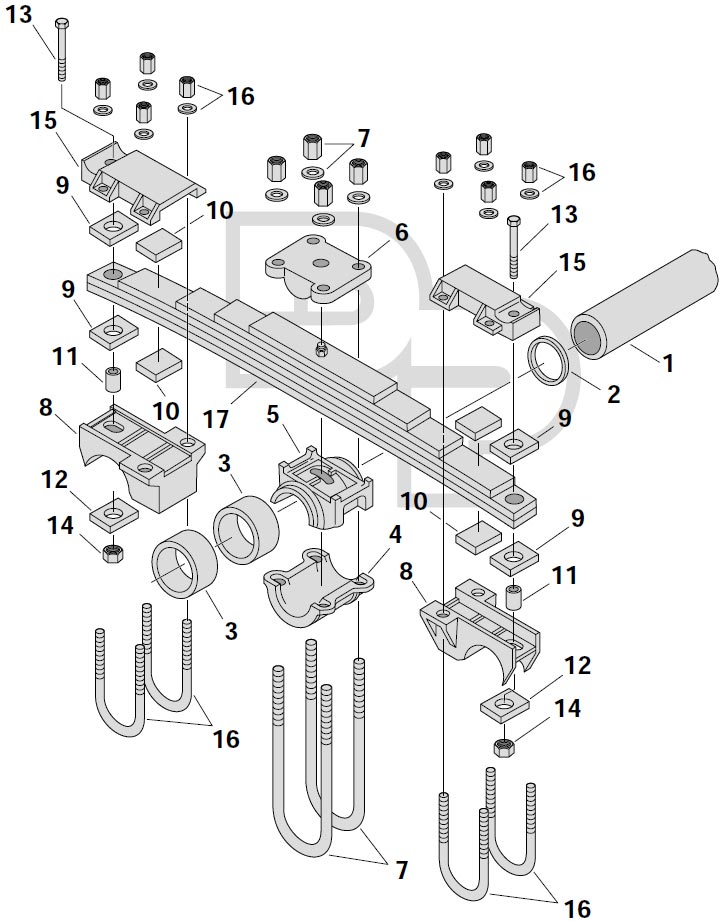

Hutch H800A
Trailer Single Point Suspension Parts
| Key No. |
Part Number |
Description | No. Req. |
OEM Number |
Remarks |
|---|---|---|---|---|---|
| 1 | 334-382 | Shaft 4" OD x 48" Lng x 1/2" Wall |
1 | 893-01 | |
| 2 | 334-363 | Washer 4" ID x 5-3/4" OD x 3/16" Thick |
2 | 895-00 | |
| 3 | 325-190 | Rubber Bushing 4" ID x 5" OD x 4" Long |
2 | 833-00 | |

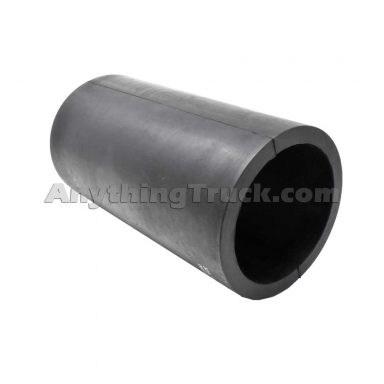

| NS | 325-107 | Rubber Bushing 4" ID x 5" OD x 9-1/8" Long |
2 | 890-00 | |
| 4 | M89200 | Trunnion, Upper Half | 2 | 892-00 | |
| 5 | M12888 | Trunnion, Half Seat | 2 | 891-00, 891-01 | |

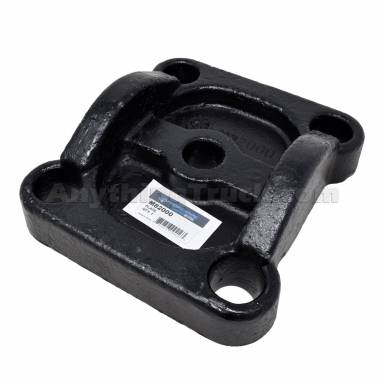

| 6 | M82000 | U-Bolt Clamp Plate | 2 | 820-00 | |
| 7 | 361-234 | U-Bolt Kit | 4 | 1-1/8" x 5-11/16" x 15-1/2" Round | |
| 8 | 338-1699 | Axle Spring Seat | 4 | 812-01, 812-00 | 5" Round Axles, Obsolete |
| 9 | 325-191 | Rubber Pad 2-15/16" W x 5-1/16" L x 7/8" Thick |
8 | 813-00 | |

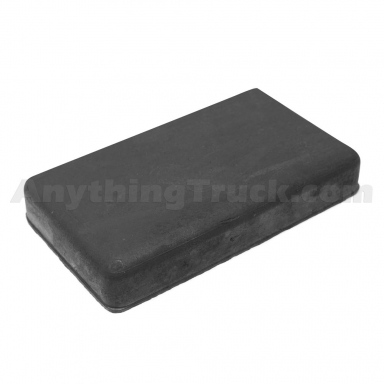

| 10 | 325-119 | Rubber Pad | 8 | 814-00 | |

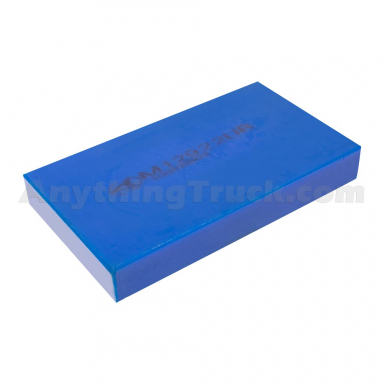

| M12922UB | Rubber Pad, Urethane | 8 | |||
| 11 | 321-309 | Bushing 1" ID x 2-1/4" OD x 2-1/4" Long |
4 | 803-00 | |
| 321-310 | Bushing 1" ID x 2-1/4" OD x 3" Long |
4 | 866-00 | ||
| 12 | 334-1276 | Adjustment Plate 3-1/4" x 4-1/4" Long, w/1" Hole |
4 | 816-00 | Obsolete |

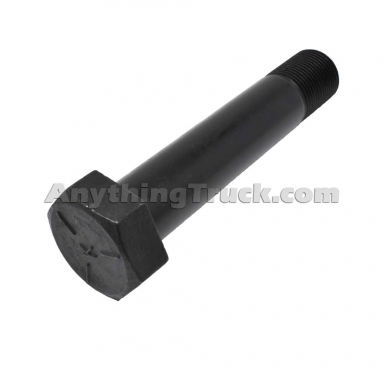

| 13 | 71902 | Bolt, 1"-14 x 5" Long | 4 | ||
| 334-1051 | Bolt, 1"-14 x 5-3/8" Long | 4 | 719-03 | 42M Series | |
| 14 | SLN107 | Lock Nut, 1"-14 | 4 | ||
| 15 | End Cap | 4 | 811-01 | Obsolete | |
| End Cap | 4 | 815-01 | 42M Series, Obsolete | ||
| 16 | 361-282 | U-Bolt Kit | 8 | 3/4" x 5-1/8" x 8" Round | |
| 17 | Spring Assembly | 2 | Contact us |
