1965-1986 Peterbilt
Conventional/Cab Over
with 3-1/2" Wide Springs
Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks

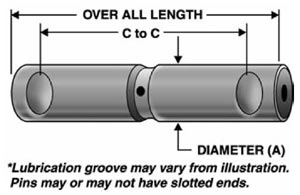

1 327447 Spring Pin
1-1/4" OD x 6" L 4-7/16" C to C 		4 02-01562
02-01846		 1977-1986

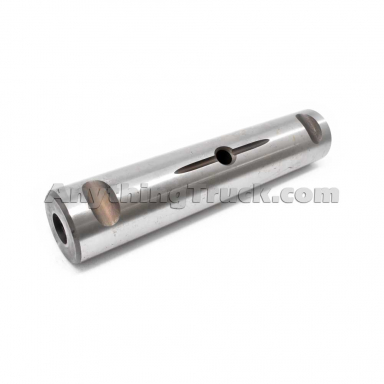

327445 Spring Pin
1-1/4" OD x 6-3/8" L 5" C to C 		2 02-01560
327224 Spring Pin
1-1/4" OD x 5-39/64" 4-3/8" C to C 		4 02-00082 Double Lock
327225 Spring Pin
1-1/4" OD x 6-3/16" 5" C to C 		2 03-00180 1965-1976; Double Lock; Use 327445
2 RNIBM Bi-Metal Bushing
1-1/4" ID x 1-1/2" OD
3-1/2" L 		4/6 02-01848 1965-1976/1977-1986
RNGBM Bi-Metal Bushing
1-1/4" ID x 1-1/2" OD
3" L 		2   1965-1976; Shackle Hanger
3 334475 Fitting, Straight Grease Zerk
1/8"-27 NPT 		6 1613B
4 N/A Eye Casting, Front 2 02-01475
5 330132 Shackle Kit 2   Includes two 330118, two 327447, one RNGBM, one RNIBM, and hardware; With 3-1/2" Spring w/338701 or 338786
6 330118 Side Bar
5-5/8" L 3-1/2" C to C
15/16" Thick 1-1/4" Pin Holes 		4 02-00362
7 334551 Bolt Assembly
3/8"-24 x 2-3/4" L 		8   Includes 334537 Bolt and Hardware
8 338786 Hanger, Shackle; 3-1/2" Wide 2 01-45523 1977-1986; 327447 Pin
338701 Hanger, Shackle; 3" Wide 2 01-00012 1965-1976; 327224 Pin; Use 338786
9 334540 Seal
1-3/16" ID x 1-3/4" OD x 1/4" Thick 		4 28-00118 1965-1976
10 361198 U-Bolt Kit;
Special Bend, Grade 8 		4 02-00991-0120 3/4" x 3-9/16" x 12-1/4", PR2 Bend, Includes nuts and washers
11   Wedge, Alignment AR
