Kenworth C500, K100/K300, W900,
T300/400/450/600/800, and T2000
Front Suspension Parts

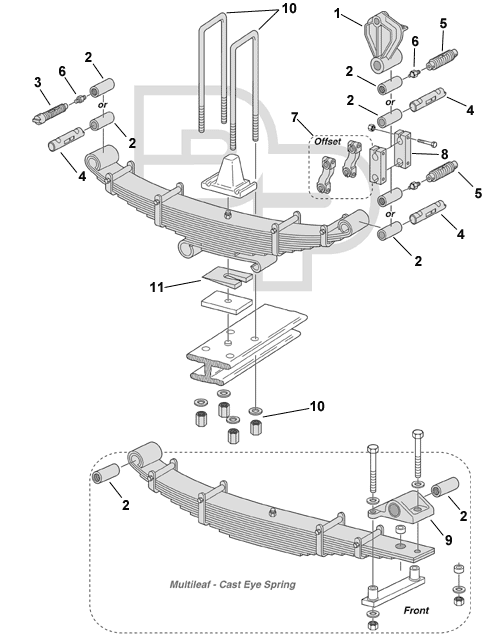

Kenworth W900 & T-Series Front Suspension Exploded View
Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks

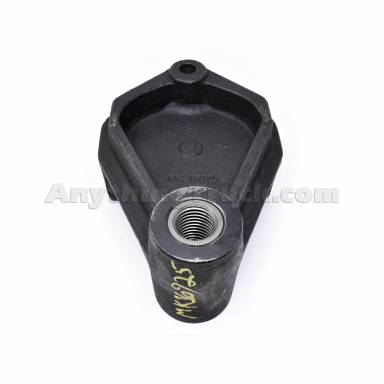

1 MK16925 Hanger 2 K056-508
K056-598		 w/TB68 Bushing; Replaces K056-474
1 N/A Hanger 2   T300 w/RNK Bushing
2 TB68 Bushing, Threaded
1-3/4" ID x 4" L
1-3/8"-6 Thread 		6 5295 Use w/327306 & 327297 Spring Pins
2 322100 Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD x 4" L 		6   Use w/327483 Spring Pin
2 322141 Bushing, w/Seals 6 HBU544 Graphite Impregnated ID w/Seals; Use w/327483 Pin
2 TB77 Bushing, Threaded Metric 6 B13-1000 T2000
3 327306 Spring Pin, Threaded
1-3/8"-6 x 7-3/8" L 		2 K179-378 Grease Fitting in Small End
3 327297 Spring Pin, Threaded
1-3/8"-6 x 7-3/8" L 		2 6262 w/1/2" Lock Pin Slots
3 327537 Spring Pin, Threaded Metric 6 B65-1002
97074826		 T2000

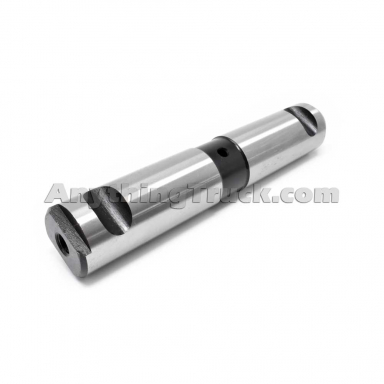

4 327483 Spring Pin;
1-1/4" OD x 6-7/8" L
5-5/16" C to C 		6 K179-527 Model 359
5 327434 Spring Pin; Threaded
1-3/8"-6 OD x 7-1/4" L
5-3/4" C to C 		4 5296
6 334475 Fitting, Straight Grease Zerk
1/8"-27 NPT 		6 1613B
7 330126 Side Bar, Offset 4 K209-55
K209-54		 Standard for Cabover, T2000
7 330168 Side Bar, Offset 4 K209-82, 87
K209-8, 89
8 N/A Side Bar
2" W x 6" L x 3-1/2" C to C 		4 P162-563 T300, K300 (KW); 200-30/33; 330
8 330125 Side Bar
6-5/16" L x 4" C to C 		4 K209-75
K209-36		 Standard for Conventional, Optional for Cabover
9 N/A Eye Casting 2 K262-34 Includes TB68 Bushing
10 361475 U-Bolt Kit;
Square Bend, Grade 8 		4 K241-309 3/4" x 4" x 8-3/4", Square Bend, Includes nuts and washers
10 361206 U-Bolt Kit;
Special Bend, Grade 8
(Two U-Bolt Kit) 		2 K241-258 3/4" x 4" x 11-1/8", HS Bend, Includes nuts and washers
10 361208 U-Bolt Kit;
Special Bend, Grade 8 		4 K241-414 7/8" x 4" x 11", HS Bend, Includes nuts and washers
11   Wedge, Alignment AR
