Low Air Leaf (to 2003)

Peterbilt Low Mount Air Leaf
Drive Axle Suspension Parts

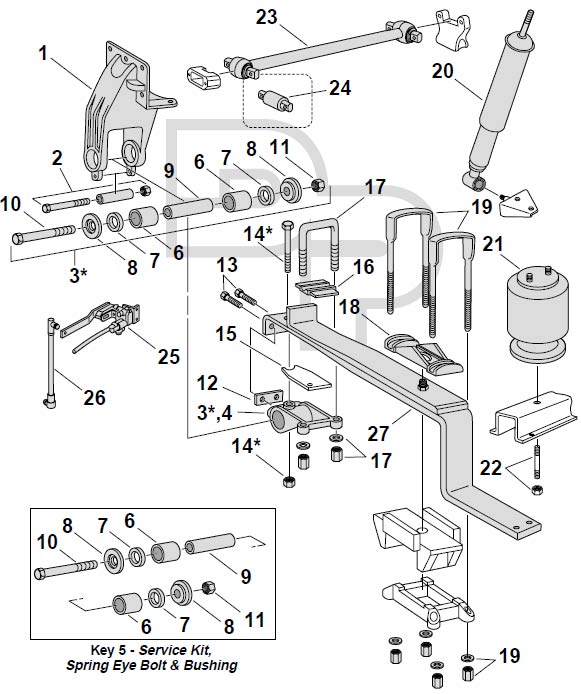

Peterbilt Low Mount Air Leaf Suspension Exploded View

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1		Hanger	2	01-46758-M001
2	334-1793	Rebound Kit	2		Includes nut and roller
3	334-1619	Replacement Spring Eye Service Kit	2		Includes 338-1797 & 334-814
4	PE10B	Spring Eye Casting	2	03-05117
5	PE9ZKIT	Pivot Bushing Kit	2	03AL2
6	320-132	Bushing 1-34"ID x 2-182"OD x 2-15/32"Lg	4	03-05101
7	334-456	Polyurethane Washer 1-3/4"ID x 2-5/8"OD x 15/16"Thk	4	03-01675
8	334-457	Compression Washer 1"ID x 3-1/4"OD x 3/8"Thk	4	03-01670
9	334-816	Beam End Sleeve 1"ID x 1-3/4"OD x 5-1/4"Lg	2	03-05102
10	334-476	Bolt 1"-14 x 8"	2	03-05125 03-05103
11	SLN-107	Lock Nut 1"-14	2
12	334-1436	Alignment Shim	2	03-05114-002
13	334-1433	Flange Bolt 3/4"-10 x 2-1/4"	4	27-00286-009
14	334-770	Spring Eye Clamp Bolt Kit	2	23-09444-500	Includes bolt and hardware
15	N/A	Spring Eye Shim 6-1/2"Lg x 1-/16"Thk	2	03-05192
16	M889	Spring Eye U-Bolt Saddle	2	03-05100
17	361-204	Spring Eye U-Bolt Kit 3/4" x 3-9/16" x 5-1/8"S	4	03-00581	Includes one u-bolt, two washers, and two nuts
18	338-1799	U-Bolt Saddle	2	03-05380 03-07677
19	361-393	U-Bolt Kit 1" x 3-1/2" x 15-1/2 SR	4	03-05110-155	Forged top
19	362-111	U-Bolt Kit Use with 3-leaf springs	4		Forged top
20	85033	Shock Absorber	2	03-05384 03-06084
21	889194	Air Spring	2	03-05107
21	889026	Air Spring	2	03-07111
21	888852	Air Spring	2	03-07887
22	N/A	Mounting Stu 1/2"-13/1/2"-20 x 6"	2	27-00972
23	TMR532	Track Rod 25-9/16" C to C	2	03-05108 943711	Rubber bushings
23	TMR532E	Track Rod 25-9/16" C to C	2		Polyurethane bushings
24	321-131	Bushing 2-17/32"OD x 4-3/8" C to C	4	03-01776	For 5/8" bolts and 1-1/8" rod diameter
25	E9623	Height Control Valve	1		Hadley type model 450HCV
26	48100225	Linkage Kit	1
27	75-163	Spring Assembly	2	03-05121	Replaces 75-147

22 Items
