800 Series Truck Suspension

Chalmers 800 Series
Truck Suspension Parts

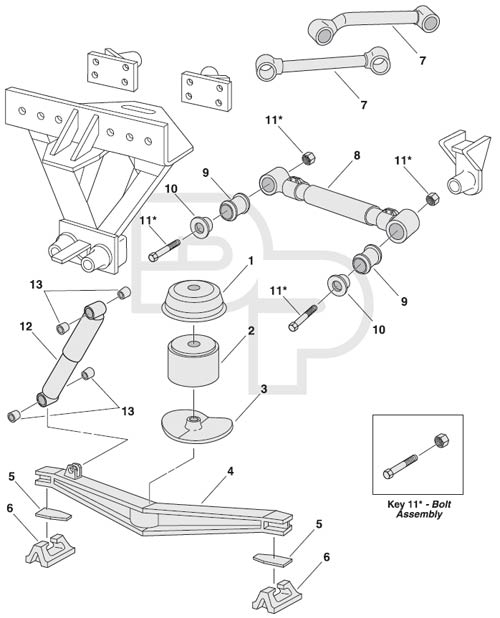

Chalmers 800 Series Truck Suspension Breakdown

Key No.	Part Number	Description	No. Req.	OEM Number	Remarks
1	334860	#28 Restrictor Can, 4-7/16"H x 12-5/8" Dia. x 3/16" Thick	2	373028, 373020	40-58K Tandem or Widespread
1	CH10G	#29 Restrictor Can, 5-11/64"H x 11-5/8" Dia. x 3/16" Thick	2	373029, 373021	40-58K Tandem or Widespread, High Stability
2	CH9E	Spring, Rubber, 8" H x 9-1/2" Diameter	2	15002	40-58K
3	CH10I	Plate, Bottom Spring, 11-1/2" x 10°	2	800691, 800125	40-58K Low Mount
3	CH10J	Plate, Bottom Spring, 11-1/2" x 13°	2	800689, 800117	40-58K High Mount
3	334-1915	Plate, Bottom Spring	2	800685, 800119	40-58K, 60K High, 46-58K 72" Low
3	Special Order	Plate, Bottom Spring	2	800687, 800127	40-58K, 60" Low
3	Special Order	Plate, Bottom Spring	2	04S00034	X-Low
3	Special Order	Plate, Bottom Spring	2	04S00086, 800417	46-58K, 72" High
4	Special Order	Walking Beam	2	Various
4	338-1901	Walking Beam	2	800691	40-58K, 54" Low
4	338-1905	Walking Beam	2	800690	50-58K, 54" Axle Spacing, Low, 11-1/4"
4	M80061	Walking Beam	2	800061	46K, 54" Axle Spacing, High Mount, 10"
4	338-2008	Walking Beam	2	800688	50-58K, 54" Axle Spacing, High Mount, 10"
4	338-2009	Walking Beam	2	800684	50-58K, 60" Axle Spacing, High Mount, 10"
4	M80087	Walking Beam	2	800087	46K, 54" Axle Spacing, Low Mount, 11-1/4"
4	Special Order	Walking Beam	2	Various	Specify Capacity, Axle Spacing, and Beam Height
5	334945	Plate, Beam End Repair - All Beams	4	700313	Replace beam when wear exceeds 0.030"
6	3381406	Saddle, Rockwell Axles	4	248001
6	3381407	Saddle, High	4	248027
6	M222083	Saddle, 5" Round	4	222083
6	Special Order	Saddle	4	31007	5" Square Drive Axles
7	345677	Torque Rod, Rigid, 15-7/8"	4	223157	40K Suspension, Type 0 & 1 Joints, Use PL1047 Bushings (not included)
7	Special Order	Torque Rod, Rigid, Offset, 46K Suspension	2	800049	Type 2 Joint
7	Special Order	Torque Rod, Rigid, 15-7/8", 46K Suspension	2	805157	Type 2 Joint
8	345674	Torque Rod, Rigid, 21-1/2"	1	223214	Type 0 & 1 Joints
8	345676	Torque Rod, Rigid, 23"	1	223240	Type 0 & 1 Joints
8	345685	Torque Rod, Adjustable, 23" Mean Length	1	216240	Type 0 & 1 Joints
8	345678	Torque Rod, Adjustable, 21-1/2" Mean Length	1	216214	Type 0 & 1 Joints
8	Special Order	Torque Rod, Adjustable, 21-1/2" Mean Length	1	807214	Type 2 Joints, 46K Suspension
8	Special Order	Torque Rod, Adjustable, 24" Mean Length	1	807240	Type 2 Joints, 46K Suspension
8	Special Order	Torque Rod, Rigid, 21-1/2"	1	805214	Type 2 Joints, 46K Suspension
8	Special Order	Torque Rod, Rigid, 24"	1	805240	Type 2 Joints, 46K Suspension
9	PL1047	2-piece Polyurethane Bushing	32	22128, 22082	Use urethane bushings for longer life. Requires 2 pieces per rod end.
9	321274	2-3/8"ID x 3-7/32"OD x 3-25/32"Lg.	4	22129	Oversize OD
9	PL1046	Torque Rod Bushing	4	800010	Standard OD, Type 2 Spigot Joint Use urethane bushings for longer life. Requires 2 pieces per rod end.
9	PL1049	Torque Rod Bushing	4	800009	Oversize OD, Type 2 Spigot Joint Use urethane bushings for longer life. Requires 2 pieces per rod end.
10	321275	Spigot Cap	2	260002	Type 0 Joint, 40K Suspension, Prior to 6/1/1992
10	CH10F	Spigot Cap	2	800201	Type 1 Joint, 40K Suspension, After to 6/1/1992
10	CH10E	Spigot Cap	2	800055	Type 2 Joint, 46K Suspension
11	CHA59	Bolt Assembly, 5/8"-11 x 3-1/2"	16	K880230	Type 0 Joint
11	334754	Bolt Assembly, 5/8"-11 x 5-1/2"	16	K880231	Type 1 Joint
11	334770	Bolt Assembly, 5/8"-11 x 5"	16	23-09444-500	Type 2 Joint
12	M85060	Shock Absorber	2		High Mount Collapsed Length: 12.72", Extended Length: 19.75"
12	M85314	Shock Absorber	2		Low Mount Collapsed Length: 16.47" Extended Length: 26.50"
13	E7529	polyurethane Shock Bushing, 1"ID	16		Use urethane bushings for longer life

24 Items

Walking Beam for Chalmers 800 Series Suspension, 54" Axle Spread, 46K High Mount, Replaces 800061 — Walking Beam for Chalmers 800 Series Suspension, 54" Axle Spread, 46K High Mount, Replaces 800061 Part Number: 052-M80061 $1,378.60 Not Yet Rated

CH10I Bottom Spring Plate for Chalmers 800 Series Truck Suspension, Low Mount — CH10I Bottom Spring Plate for Chalmers 800 Series Truck Suspension, Low Mount Part Number: 130-CH10I $110.69 Not Yet Rated

CH10J Bottom Spring Plate for Chalmers 800 Series Truck Suspension, High Mount — CH10J Bottom Spring Plate for Chalmers 800 Series Truck Suspension, High Mount Part Number: 130-CH10J $123.02 Not Yet Rated

M80056 1/8" Spacer Plate for Chalmers Suspensions — M80056 1/8" Spacer Plate for Chalmers Suspensions Part Number: 052-M80056 $9.40 Not Yet Rated

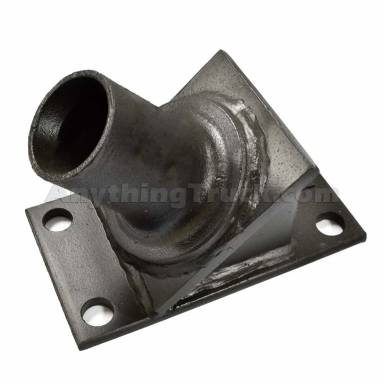

PTP M80057 Torque Rod Bracket, Replaces Chalmers 800057 — PTP M80057 Torque Rod Bracket, Replaces Chalmers 800057 Part Number: 052-M80057 $193.25 Not Yet Rated

M80087 800-Series Truck Suspension Walking Beam, 54" Axle Spread, 46K Low Mount — M80087 800-Series Truck Suspension Walking Beam, 54" Axle Spread, 46K Low Mount Part Number: 052-M80087 $1,131.93 Not Yet Rated

M222083 Saddle for Chalmers 600 & 800 Series Truck Suspensions — M222083 Saddle for Chalmers 600 & 800 Series Truck Suspensions Part Number: 052-M222083 $105.51 Not Yet Rated

BKC580312GR8F 5/8" x 3-1/2" 4-Piece Bolt Kit for Type 0 Torque Arm Joints in Chalmers Susp. — BKC580312GR8F 5/8" x 3-1/2" 4-Piece Bolt Kit for Type 0 Torque Arm Joints in Chalmers Susp. Part Number: 285-CHA59 $21.01 Not Yet Rated

Type 1 Spigot Cap for Chalmers 700, 800, and 1000 Suspensions, Replaces Chalmers 800201 — Type 1 Spigot Cap for Chalmers 700, 800, and 1000 Suspensions, Replaces Chalmers 800201 Part Number: 130-CH10F $40.30 Not Yet Rated

Euclid GAFF18566 1" ID Polyurethane Shock Absorber Bushing, Requires 2 bushings per end — Euclid GAFF18566 1" ID Polyurethane Shock Absorber Bushing, Requires 2 bushings per end Part Number: 270-GAFF18566 $10.56 Not Yet Rated

Restrictor Can for Chalmers Suspensions, 5-11/64" H x 11-5/8" Dia. x 3/16" Thick — Restrictor Can for Chalmers Suspensions, 5-11/64" H x 11-5/8" Dia. x 3/16" Thick Part Number: 130-CH10G $154.65 Not Yet Rated

Atro PL1047 Polyurethane Torque Rod Bushing, Replaces Chalmers 22128, Requires 2 per Torque Rod End — Atro PL1047 Polyurethane Torque Rod Bushing, Replaces Chalmers 22128, Requires 2 per Torque Rod End Part Number: 049-PL1047 $29.92
