Tekonsha 90160 Primus IQ Electric Brake Control, 1-3 Trailer Axles Part Number: 755-90160

Not Yet Rated | Write the First Review

Tekonsha Primus IQ Installation Manual ( .pdf )
Hard-Wiring Diagram and Instructions ( .pdf )

PRIMUS IQ is a totally proportional electric trailer brake control. Primus utilizes the primary sensor technology from Tekonsha's high tech Prodigy brake control and features the Tekonsha® one step "Point and Go" set-up system. Easy-to-set systems allows the driver maximum flexibility when determining how the trailer should respond to a braking event. The snap-in dash mount clip and removable electrical connector allow for quick and easy storage when you're not towing your trailer. You'll also appreciate the digital readout that displays a secure electrical connection and the amount of voltage being delivered to the trailer brakes. Primus meets National Highway Traffic Safety Administration (NHTSA) regulations regarding tow vehicle/trailer light activation.

Special Notes

none

Product Description

Manufacturer: Tekonsha

Part Number: 90160

Voltage: 12-Volts DC

Proportional brake control

Works proportionally in reverse

Controls the electric brakes on trailers with 1-3 axles

Continual diagnostic checks for proper connection

Boost feature allows you to apply more initial trailer braking power when towing heavy trailers

Simple Point and Go™ one step setup

Digital readout of voltage delivered to trailer brakes

Unique dash mounting clip

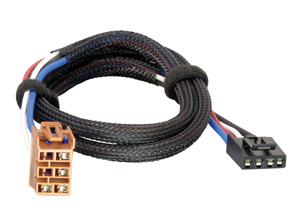

Quick disconnect wire harness for easy storage when not in use

Includes dash mounting clip, standard mounting bracket, detachable wire harness, mounting screws, owner's manual, wiring instructions, and instructional DVD

A circuit breaker is required when you don't use a vehicle specific wire harness:
20 Amp Circuit Breaker - For 1 or 2 axle trailers
30 Amp Circuit Breaker - For 3 axle trailers
