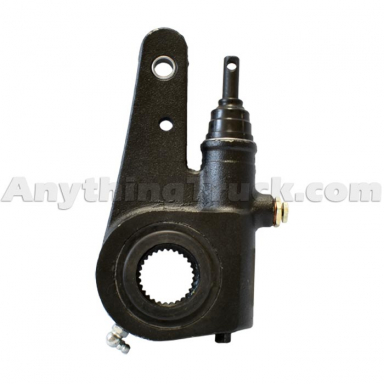

Meritor R803110 Automatic Slack Adjuster, Type 3, 1.50" 28 Spline, 5.5" Span Part Number: 650-R803110

Not Yet Rated | Write the First Review

Special Notes

none

Product Description

Manufacturer: Meritor

Part Number: R803110

Type 3 Automatic Slack Adjuster

Stroke Sensing Adjuster - Adjusts brake automatically based on drum brake pushrod stroke length

Fits 1.50" - 28 spline camshaft

5.5" Arm Length (Span)

5/8" - 18 clevis thread

Straight slack adjuster, No offset

Uses yellow piston

For use on drum brakes with a type 24 or type 30 brake chamber

Includes one slack adjuster without clevis, installation instructions, and an installation template

Meritor's unique automatic slack adjuster design keeps brake in constant adjustment; eliminates the need for frequent under-the-truck brake adjustments; reduces brake maintenance costs; reduces vehicle safety inspection citations; and allows for optimum brake performance.

Cross References: E11401, 00002754, 05563, TDAA323275H1152, TDAR801073, AS1040, AS1140, CS56040, CS56007, 1694064C91, ATIR801073, A213275N768S, A23275U1139, A23275U1139S, A243275N768S, A273275H1152S, A323275H1152, R801073, PROSA55073, R803110B40, 650-R803110B40, R803110B400, 650-R803110B400
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
