Meritor CP72N-DWT 72N Delta Wing U-Joint Part Number: 650-CP72NDWT

Not Yet Rated | Write the First Review

Special Notes

none

Product Description

Manufacturer: Meritor

Part Number: CP72N-DWT

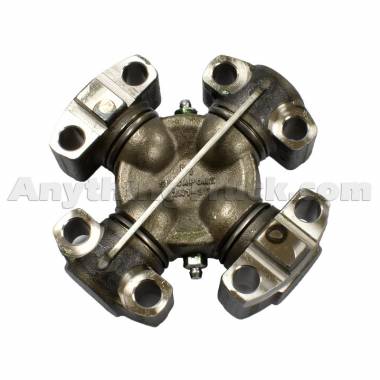

Meritor 72N Wing-Type U-Joint

Cross Length: 5.347"

Cross Trunnion Diameter: 1.043"

CL to CL Bearing Bolt Hole: 1.938"

Swing Diameter: 6.22"

Pilot Diameter: 5.84"

Wing Bearing Hole to Wing Bearing Hole: 4.63"

Includes mounting bolts and washers

Cross References: CP72NDWT, 650-CP72NDWT, CP72N-DWT, 7100, 058735, 083541, 57000X, DT7000, DT7000X, 2006739, T639-1, T698-7, B4TZ4635D, B4TZ4635J, C4TA4635B, D3HZ4635A, 46139, 2041859, 611934, 659973, 8871795, 2307000, 201SJ40, 201SJ48, 35MUA29P1, CP68WB6, CP68WB9, CP72N112, CP72N113, CP72N32, CP72N108, 102684R91, 12646H91, 1356512HB, 238077R91, 238449R91, 239738R91, 255341R91, 376892C91, 416946C91, 287205, 287208, 50725, 72051, S-1720, S1720, 57205, 20099, 300905015, KC7012
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
