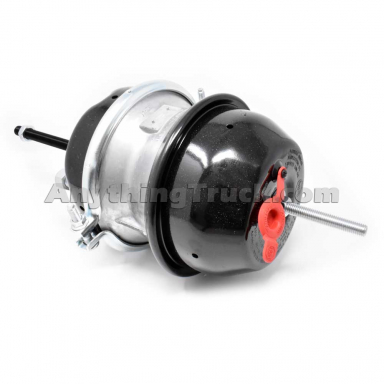

MGM 3430051 3030 Spring Brake Assembly, 2.5" Stroke

460-3430051
Ratings Snapshot
5.0
out of 5
5 (1)
4 (0)
3 (0)
2 (0)
1 (0)
Would recommend this product.
100%
$75.27
MGM 3430051 3030 Spring Brake Assembly, 2.5" Stroke
Processing...
Availability
Qty in Stock: 50
Add'l Qty (1-4 days): 162
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


Special Notes
none
Product Description
Manufacturer: MGM Brake
Part Number: 3430051
Complete service and spring brake assembly
Type 30 spring brake chamber
Type 30 service brake chamber
Stroke: 2.5" (Standard)
Includes spring cage bolt
Spring chamber permanently attached for safety
Epoxy-coated internal parts for long life
MGM Spring Brake Schematic
Combination Spring Brake Specifications
A: 9.04" (Length of chamber from face of stud housing to the end of the spring housing)
B: 6.66" (Length of Piggyback center body to end of spring housing)
C: 8.31"
D: 8.21" (Dimension at rolled seal)
E: 4.75" (Stud Spacing)
F: 5/8"-11 UNC (Stud Size)
G: 5/8"-18 UNF (Push rod size)
X: 8.0" (Push rod length)

Cross References: EGC-3030, OTR3030SB, GC3030, 3918827, 3430051X, 3430375, 1691135C91, 991071C91, 50866002, 3945423, 3430332
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. Please double check the description to be sure it will work in your application.
