PTP HT794RD Trailer Hub, Outboard Mount, HM212049 & HM218248 Bearings, For Aluminum Wheels Part Number: 421-HT794RD

Not Yet Rated | Write the First Review

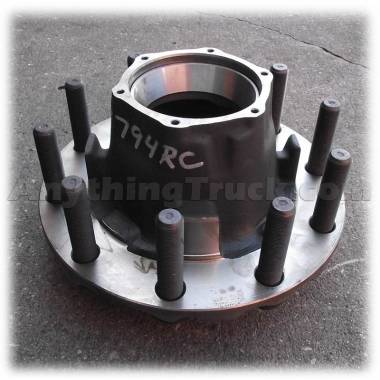

This hub comes with studs pre-installed for aluminum wheels. See below for the same hub with studs for steel wheels.

Special Notes

none

Product Description

Manufacturer: Pro Trucking Products

Part Number: HT794RDPTP

Condition: New

Mount Type: Outboard

Outer Bearing Cup: HM212011

Outer Bearing Cone: HM212049 (not included)

Inner Bearing Cup: HM218410

Inner Bearing Cone: HM218248 (not included)

Hub Cap Bolt Circle: 5.50" (6-hole)

No. of Wheel Studs: 10

Wheel Stud: M3217

Wheel Stud Standout: 4-1/16" (From hub face to end of stud thread)

Wheel Stud Bolt Circle: 11.25"

Wheel Type: Aluminum

Drum Pilot Diameter: 8.78"

Seal Bore Diameter: 6.00"

ABS Ready: Yes

What's Included: Hub, studs, bearing cups

Use with 3600A brake drum

Cross References: HT794RD, 421-HT794RD, AL794RD, ALPS794RD, HT794J, HT794RD, GUN HT794RD, 3398-HT794RD, 20231-5T, 202315T, TH100-4, 10026185, 10082252, 102364, 008-290-14, 00829014, 008-290-17, 00829017, 00829014, 00829017, 2819002, 410053, 1000011101, 497LG, 202315, 18109H, 0415984004, 10-00114-101, 1000114101, 150.T8101.S1, 150T8101S1, 150.T8101.S1M, 150T8101S1M, S-35216-2, S352162, 356-S352162, S-35216-4, S352164, 356-S352164, S-35216-6, 356-S352166, S352166, 008-290-17, 220-00829017, 00829017
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
