SAF Holland XA‑171‑A‑L‑P FW17 Fifth Wheel Top Plate, Left‑Hand Release Part Number: 370-XA171ALP

Not Yet Rated | Write the First Review

The SAF Holland XA‑171‑A‑L‑P is the standard FW17 fifth wheel top plate featuring a left-hand manual release. Rated for 50,000 lbs maximum vertical load and 150,000 lbs drawbar pull, the FW17 is designed for standard-duty, on-highway applications requiring a durable, low-maintenance fifth wheel head with long service life.

Product Description

Manufacturer: SAF Holland

Part Number: XA-171-A-L-P

Model: FW17 Fifth Wheel Top Plate

Condition: New

Configuration

Release Handle: Left-Hand

Kingpin Size: 2"

Duty Rating: Standard Duty, On-Highway

Performance Ratings

Maximum Vertical Load: 50,000 lbs

Maximum Drawbar Pull: 150,000 lbs

Warranty: 5 Years / 500,000 Miles

Design Features

Ductile Iron Top Plate Construction

Forged Steel Lock Jaw

Automatic Secondary Lock

Closed-Loop Drop Handle

NoLube™ Pocket Inserts

Cast-In Grease Grooves

Replaceable Front Lock

Included Components

Bracket Pins

Bolts

Pocket Inserts

Service & Rebuild Kits

Rebuild Kit (Standard): RK-17-A-L-H

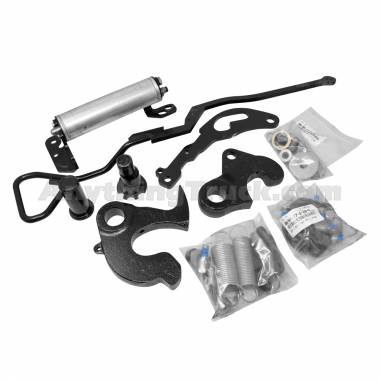

Rebuild Kit (Air Release): RK-17-A-80-L-H

Lock Replacement Kit: RK-171-12305

Release Handle Kit (Manual): RK-171-12308

Release Handle Kit (Air): RK-171-12308-AR

Pocket Inserts (Pair): RK-PKT-2

Bracket Pin & Cushions Kit (Integrated Plate Mount): RK-171-12309

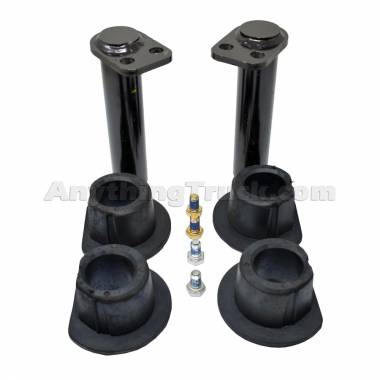

Bracket Pin & Cushions Kit (ILS/Cast Brackets): RK-171-12310

The FW17 top plate features ductile iron construction, a forged steel lock jaw, and an automatic secondary lock for secure coupling. NoLube™ pocket inserts and cast-in grease grooves reduce maintenance requirements, while the replaceable front lock simplifies service. The XA‑171‑A‑L‑P includes bracket pins, bolts, and pocket inserts for installation and carries a 5-year/500,000-mile materials and workmanship warranty.

Cross References: XA-171-A-L-P, XA171ALP, 370-XA171ALP, XA-S1-A-L-P, XAS1ALP, HOHXAS1ALP, 3889-XAS1ALP
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
