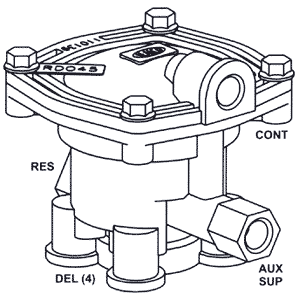

Aftermarket 110139 Service Relay Valve - 4 Delivery Ports with Ratio Feature

    Aftermarket 110139 Service Relay Valve - 4 Delivery Ports with Ratio Feature

    Code: 322-GN110139
    Not Yet Rated | Write the First Review
    Qty in Stock: 2
    Add'l Qty (1-4 days): 6
    Quantity in Stock reflects available inventory as of 5:00 AM CST.
    $59.93
    Quantity:


    Special Notes
    none
    Product Description
    Manufacturer: PTP
    Condition: New
    Direct replacement for Sealco 110139 relay valves
    Ratio Feature
    Do not use this valve on converter dollies, trailer turntable axles or lift axles
    4 Delivery ports
    Auxiliary supply port = 3/8" pipe thread
    Control port size = 3/8" pipe thread
    Reservoir port size = 3/4" pipe thread
    Delivery port size = 3/8" pipe thread
    Nominal crack pressure = 4.5 psi

    The Ratio Feature is considered a benefit in hard stop situations and refers to the relationship between the control air pressure to the valve and the delivered air pressure from the valve to the service brake chambers. During normal stopping, a 1:1 ratio exists between the control and delivered air pressures. In a hard stop, the ratio momentarily changes to 1:1.5 until valve lap-off occurs and the ratio is restored. This change takes place in less than 1/100th of a second.

    Cross References: 110126
    A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
