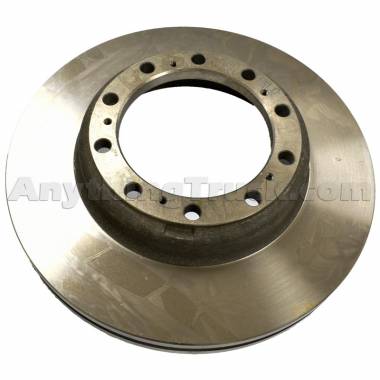

PTP E11125 10-Hole Hydraulic Brake Rotor, GM, 15.38" Dia., 6" Pilot Part Number: 270-E11125

Not Yet Rated | Write the First Review

The E11125 is an ABS ready rotor that is typically used on GM trucks with two piston brake calipers. The top hat of the casting has no chamfer for extra clearance. See P/N E-11311 below if you have four piston calipers, and the top hat casting is chamfered for clearance. These rotors should not be interchanged because of the differnce in rotor thickness.

Special Notes

none

Product Description

Manufacturer: Pro Trucking Products

Part Number: E11125

Hydraulic Brake Rotor

Used on GM trucks

Diameter: 15.380"

Disc Thickness: 1.440" (New)

Minimum Disc Thickness: 1.320"

Overall Rotor Depth: 3.440

Bolt Circle: 7.250"

Number of Bolt Holes: 10

Bolt Hole Diameter: 0.594"

Pilot Diameter: 6.000"

Includes 5 tapped holes for mounting an ABS ring

ABS Ring Mounting Holes: M8-1.25-6H

ABS Ring Holes Bolt Circle: 6.800"

Cross References: E11125, 270-E11125, E-11125, 55052, 123485, 23123485, 12386718, 23123485002, R4411125, 85126317, 23-123485-002, D6052, 421-D6052
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
