Dexter 009-123-03 Brake Drum for 9K, 10K, and 13G Axles, 12-1/4" x 3-3/8" Brake, After July 2009 Part Number: 220-91233

Not Yet Rated | Write the First Review

This brake drum was put into service in May of 2013 to supercede Dexter one-piece hub and drum combinations 008-415-02 and 008-415-04. The one-piece hub and drum combinations went into service after July of 2009, and they're no longer available. You will have to switch over to the new two-piece hub and drum design.

Special Notes

none

Product Description

Manufacturer: Pro Trucking Products

Part Number 91233

Replaces Dexter part number 009-123-03

This brake drum is used on Dexter Axle 9K, 10k, and 13G 12.25" x 3.375" brakes.

Brake Diameter: 12-1/4"

Brake Width: 3-3/8"

Holes: 8

Bolt Circle: 7-1/2"

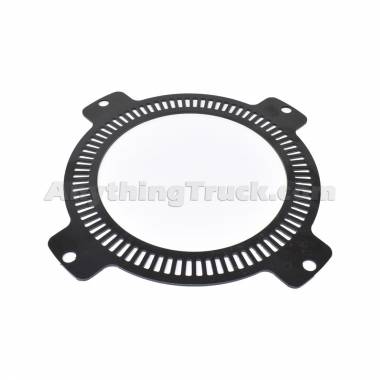

ABS Ready: Yes (Tone ring not included)

Cross References: 91233, 220-91233, 009-123-03, 00912303, 009-123-01, 00912301
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
