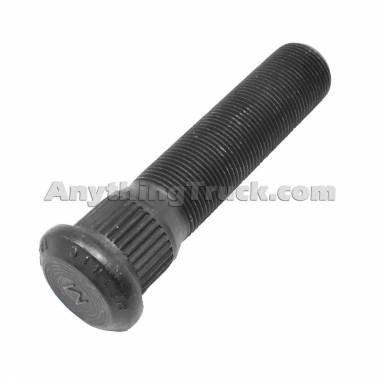

PTP M3669 Wheel Stud, M22x1.5 Thread, Replaces Gunite W-1160, 5-3/32" Long, Use with Aluminum Wheels

Part Number:130-M3669
Not Yet Rated | Write the First Review
$7.98 USD
PTP M3669 Wheel Stud, M22x1.5 Thread, Replaces Gunite W-1160, 5-3/32" Long, Use with Aluminum Wheels
Processing...
Availability
Qty in Stock: 835
Add'l Qty (1-4 days): 771
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


The M3669 wheel stud is very similar to the M3217 stud. It may look like the slight difference in length will work, but there is also a difference in shoulder length.

These wheel studs cannot be interchanged because of the different shoulders. You can end up with shoulder sticking out of the hub, and that will interfere with installation of the brake drum.

Special Notes
Use with dual aluminum wheels
Product Description
Manufacturer: PTP
Part Number: M3669
Thread: M22 x 1.5
Body Diameter: .971-.975
Serrated Diameter: 1.001-1.005
Length (Under Head): 5-3/32"
Shoulder Length: 7/8"
Thread Length: 3-3/4"
Serration Length: 1/2"
Grade: 10.9

Cross References: M-3669, W-656, WA07-5205, 6411507, 422, 131576, 13-1576, X20X2388, E-8980, E8980, W1160, 15577911, R008980, 50-1271, 007-195-00, 220-00719500, 00719500
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
