Bendix 288241X PP-7 Push/Pull Trailer Supply Valve - 1/4" NPT Exhaust Port, 40 PSI Auto Rel Pressure

Part Number:061-OR288241X
Not Yet Rated | Write the First Review
$80.60 USD
Bendix 288241X PP-7 Push/Pull Trailer Supply Valve - 1/4" NPT Exhaust Port, 40 PSI Auto Rel Pressure
Qty in Stock: 3
Add'l Qty (1-4 days): 7
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details

Special Notes

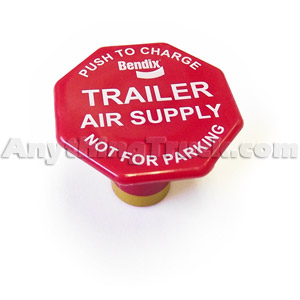

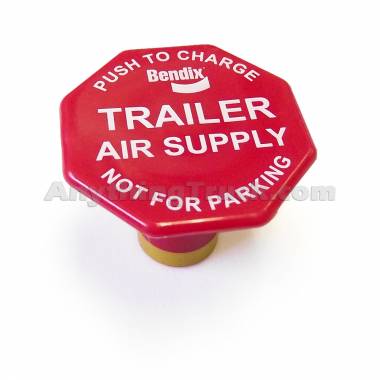

Button and mtg. nut are NOT furnished with this valve
Product Description
Manufacturer: Bendix
Part Number: 288241X
Condition: Remanufactured
Bendix reman valves have the same warranty as new valves
Automatic pressure release = 40 psi
Threaded exhaust port = 1/4" pipe thread
Shaft Size: 5/16"

The PP-7 push-pull control valve is a pressure sensitive, on/off control valve which will automatically return to the exhaust (button out) position when supply pressure is below the required minimum. It may be manually operated to either position when pressure is above the required minimum. Button configuration and lettering may vary depending on application. The automatic exhaust pressure is 40 psi.

The PP-7 is used to control the tractor protection system and is generally identified as the trailer air supply valve. The valve employs an air operated interlock in the lower body which will apply the trailer brakes when the tractor spring brakes are applied. The interlock insures that the tractor spring brake can not be applied without the trailer spring brakes also being applied. Normally this action will not affect the position of the PP-7 valve button. The interlock of tractor and trailer parking is a requirement of FMVSS 121.

Cross References: 288241, 287282, 287282X, R955288241, RKN20025, EBN288241N, OR288241X, 745-106113, WA106113, LPP3502, AV288241, PL-288241, SB285, 401137, 034079, 1093109
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
