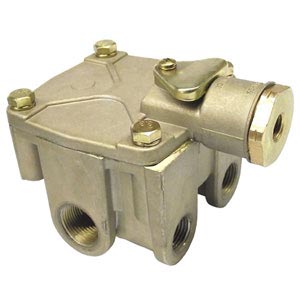

Bendix 103010X R-14 Relay Valve, 4 PSI Crack Pressure, Horizontal Del. Ports

Product Details

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 103010X

Condition: Remanufactured

Air Brake Relay Valve

Horizontal delivery ports

Crack Pressure: 4 psi

Supply Port: 3/4" NPT

Delivery Ports: 1/2" NPT (4)

Control Port: 1/4" NPT

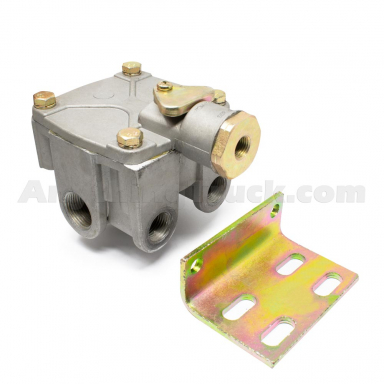

Includes universal mounting bracket

Can replace Bendix 103066 & 104574 by bushing the supply port or ports from 3/4" to 1/2"

Relay valves are primarily used on long wheelbase vehicles to apply and release rear axle(s) service or parking brakes. They are air operated, graduating control valves of high capacity and fast response. Upon signal pressure from the service brake valve, they graduate, hold or release air pressure from the chambers to which they are connected. They are generally mounted close to the chambers they serve. Relay valves are available in both remote and reservoir mount designs and feature inlet/exhaust valve cartridge replacement without line removal.

Cross References: 103010, 103010X, 061-103010X, GN103010, 322-GN103010, 103125, 103125X, 514753, 1899664721, P1000471, 103010-BW, 103010BW, 102855, 102856, 102858, 102859, 102860, 102998, 103000, 103010N, 103021, 103023, 103024, 103043, 103082, 103112, 103125, 103230, 103247, 104146, 107406, 108500, 109788, 109932, 5000339, 5001488, 1066323, 1066687, 113593, 550014, 2991072, AV103010, 30065, E-BN103010N, EBN103010N, BW103010, BW 103010, GAFP103480, GAFP112606, MBW103010, 10130595, KN28071, KN28071X, KN28140, 36U330D1, 763355, 445401630A, 416003804752, 2530012464307, K103010, 197981, 900210A, 12019533, 763355, 20QE460, 20QE460P3, 745-103010, 745X103010, 900705004001, 15503793, 15535017, X15503793, XG1013456, XG1016586, R955103010, R955103010N, RKN28071, WA103010, TWDH103010, H103010, 103010B1, 1677540C91, BAN103010, BAR103010, BX103010, BX103010B1, R955103010, ZAC103010, EU1101008, 4287, NC10806, NC108066, S-8255, S8255, 1013456, 1349880, P103480, 5004M5, 034027VEL, 103010BXR, 103010BXW, 109932, 17340001, 802051, K295263R, K295D263R, TV103010TEC, 37552031P, 550190, 641120, AV103010, PL-103010, PL103010, RB-103010, RB103010, 13AV4565, 401169, 14018, TV103010, 29762, 6117189, 86480438, 401169, TLA103010, 034027, 1092930, 72201-5004, 722015004, 722010027, 61170189, 21414960
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
