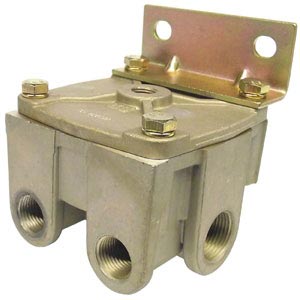

Bendix 103009X R-12 Relay Valve with Horizontal Delivery Ports

Part Number:061-OR103009X
Not Yet Rated | Write the First Review
$61.25 USD
Bendix 103009X R-12 Relay Valve with Horizontal Delivery Ports
Qty in Stock: 8
Add'l Qty (1-4 days): 16
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details

Special Notes
Product Description
Manufacturer: Bendix
Part Number: OR103009X
Condition: Remanufactured
R-12 Relay Valve
Horizontal delivery ports
Includes universal mounting bracket
Crack Pressure: 4 psi
Delivery Ports: 1/2" NPT
Supply Port: 3/4" NPT

Relay valves are primarily used on long wheelbase vehicles to apply and release rear axle(s) service or parking brakes. They are air operated, graduating control valves of high capacity and fast response. Upon signal pressure from the service brake valve, they graduate, hold or release air pressure from the chambers to which they are connected. They are generally mounted close to the chambers they serve. Relay valves are available in both remote and reservoir mount designs and feature inlet/exhaust valve cartridge replacement without line removal.

Cross References: 103009, 104596, 294866, E0917B011, EO917BO11, T294866, T294866C, 800238, 065309, 065309X, 102537, 102537X, 103065, 103065X, 106285, 107441, 107441X, 65309, 65309X, E3HT2A449AA, E6HT-2A-449AA, E6HT2A449AA, E6HZ2A449B, F3HS2A449AA, 825553, AKA3927, 10130393, 103009X, KN28060, KN28061, KN28132, KN28140, KN28510, 20QE1320, 20QE347P1, 20QE458, 4C111, 501521R1, 1614572C91 ,1677541C91, 182778H1, 23254, 803022, K2953681, 641088, S6006A, 9125, 110197. 110410, 20015, 3935413, 034026, 1092929, 25AA0630, 793580, 985407, 103705, 103009N, 070-103009RX
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
