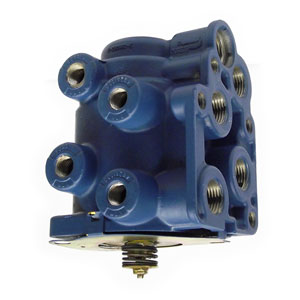

Bendix 287411X E-7 Dual Brake Valve

    Bendix 287411X E-7 Dual Brake Valve

    Code: 061-287411X
    Not Yet Rated | Write the First Review
    Qty in Stock: 2
    Add'l Qty (1-4 days): 3
    Quantity in Stock reflects available inventory as of 5:00 AM CST.
    $173.16
    Quantity:


    Special Notes
    Treadle and mounting plate not furnished
    Product Description
    Manufacturer: Bendix
    Part Number: 287411X
    Condition: Remanufactured
    Bendix reman valves have the same warranty as new valves
    Port A = 1/2" NPT
    Port B = 1/2" NPT
    Port C = 1/2" NPT
    Port D = 1/2" NPT
    Port E = 1/4" NPT
    Port F = 1/4" NPT
    Port G = 1/4" NPT
    Port H = 1/4" NPT
    Port J = 3/8" NPT
    Port K = 3/8" NPT
    Port L = 3/8" NPT
    Port M = 3/8" NPT
    No Mounting studs in positions N, O, or P

    Dual circuit brake valves utilize two separate supply and delivery circuits for service and secondary braking. The number one or primary circuit portion is mechanically operated through the action of the treadle/pedal and plunger. The number two or secondary circuit normally operates similar to a relay valve, with control air delivered from the number one primary circuit. In the emergency mode (failure of the primary supply), the secondary inlet valve is mechanically opened by a push through mechanical force from the driver's foot via the treadle/pedal, plunger and primary piston.

    The E-7 and E-14 dual brake valves are firewall mounted, suspended pedal valve with two separate supply and delivery circuits. Threaded supply and delivery ports for both circuits are provided at the back of the valve. For engine side firewall connections, an optional manifold is available.

    Cross References: 287411, 287411R, 288383, 286773, 288862, 289490, 287407, 287408, 720025001, ZAC287411
    A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
