- Special Notes
- Product Description
- Manufacturer: Bendix
- Part Number: 286364X
- Condition: Remanufactured
- Bendix reman valves have the same warranty as new valves
- Reservoir trip pressure = 55 psi

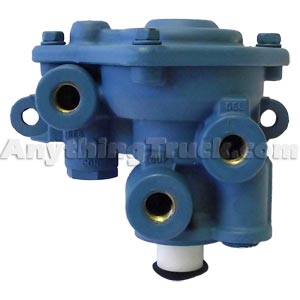

The SR-1 spring brake valve is used in dual or "split" air brake systems equipped with spring brake actuators. The function of the SR-1 valve is to supply a specific, limited hold-off pressure to the spring brakes, and in the event of loss of No. 1 service air pressure, to modulate the spring brakes through the use of the service brake valve.
The valve has four identified 1/4" NPT ports and a diaphragm protected exhaust port. Two 5/16" diameter holes are provided in the integral mounting bracket of the valve body. The SR-1 valve must be mounted with the exhaust port down toward the road surface.
Cross References: 286364, 286364R, 104535, 104535X
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
