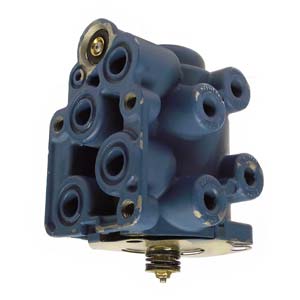

Bendix 284760X E-7 Dual Brake Valve - Includes O-Rings, Ford Applications

    Bendix 284760X E-7 Dual Brake Valve - Includes O-Rings, Ford Applications

    Code: 061-284760X
    Not Yet Rated | Write the First Review
    Qty in Stock: 1
    Add'l Qty (1-4 days): 2
    Quantity in Stock reflects available inventory as of 5:00 AM CST.

    Special Notes
    Product Description
    Manufacturer: Bendix
    Part Number: 284760X
    Condition: Remanufactured
    Bendix reman valves have the same warranty as new valves
    Exhaust Port: No Threads
    Port A (Supply): No threads
    Port B (Delivery): No threads
    Port C (Supply): No threads
    Port D (Delivery) No threads
    Port E (Supply): 1/4" NPT
    Port F (Delivery): N/A
    Port G (Supply) 1/4" NPT
    Port H (Delivery): N/A
    Port J (Supply): N/A
    Port K (Delivery): N/A
    Port L (Supply): N/A
    Port M (Delivery): N/A
    No mounting studs in positions N, O, or P
    Includes 10 sealing rings
    Treadle and mounting plate not furnished

    Dual circuit brake valves utilize two separate supply and delivery circuits for service and secondary braking. The number one or primary circuit portion is mechanically operated through the action of the treadle/pedal and plunger. The number two or secondary circuit normally operates similar to a relay valve, with control air delivered from the number one primary circuit. In the emergency mode (failure of the primary supply), the secondary inlet valve is mechanically opened by a push through mechanical force from the driver's foot via the treadle/pedal, plunger and primary piston.

    The E-7 and E-14 dual brake valves are firewall mounted, suspended pedal valve with two separate supply and delivery circuits. Threaded supply and delivery ports for both circuits are provided at the back of the valve. For engine side firewall connections, an optional manifold is available.

    Cross References: 284760, 283301, 286771, R955284760, 282410, 283300, 283301, 284350, 284688, 285146, 287166, 287176, 50000988, 5000989, 30082, 75HA2A270AA, 97HA2A270AA, D0HA2A270C, D0HZ2A270AA, EDD0Ha2A270C, 6944870, SA146, 401176, 8279284760, 034040
    A cross reference listing means that this valve should be a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required. You should check the description to be sure it will work in your application.
