- Special Notes

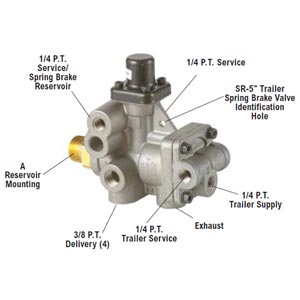

- The SR-5 is almost identical in appearance to the SR-2. The distinguishing characteristic of the SR-5 is a hole drilled into the flat surface between the pressure protection valve and the body.
- Product Description
- Manufacturer: Bendix
- Part Number: 109615X
- Condition: Remanufactured
- Bendix reman valves have the same warranty as new valves
- Reservoir connection A size = 3/4" pipe thread
- With anti-compounding
The SR-5 is a trailer spring brake control valve. It mounts to a reservoir on the trailer and, like the SR-2 & 4, it controls the trailer spring brakes. The SR-5 is similar to the SR-2 and SR-4 but it allows for simpler trailer system plumbing while complying with the latest version of FMVSS 121 (Docket 90-3, Notice 4). However, unlike the SR-2 and SR-4, the SR-5 controls trailer spring brake release using trailer Supply Line pressure. Because dedicated or isolated reservoir pressure is no longer required by law for spring brake release, the SR-5 system needs only a one reservoir for service volume on single axle trailers. Two reservoirs are generally needed for 121 service volume requirements on tandem units. An integral anti-compound feature is part of the SR-5.
Older trailers using the SR-4 can easily be upgraded to the SR-5 with a minimum of repiping.
Cross References: 109615, 065437, 65437, 102831, 109615, 65437
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
