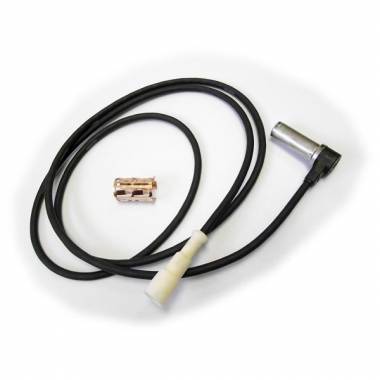

Bendix K181265 WS-24 ABS Wheel Speed Sensor, 90-Degree, 75.5" Harness, DIN 2-Pin, w/Sleeve Part Number: 060-K181265

Not Yet Rated | Write the First Review

The Bendix K181265 is a WS-24 antilock brake wheel speed sensor with a 90-degree body and DIN 2-pin barrel sealed socket connector. The WS-24 is an electromagnetic sensor that works with an exciter ring to generate an AC signal for the ABS controller. Sensor resistance at room temperature is 1,500-2,000 ohms. Sensor body outer diameter is 0.627". Maximum sensor-to-exciter gap is 0.015". IPX9K ingress protection rated. Clamping sleeve and grease included. Note: WS-24 sensors require clamping sleeve p/n 5012878 — do not use previous sleeve p/n 5006849.

Product Description

Manufacturer: Bendix

Part Number: K181265

Series: WS-24

Function: ABS Wheel Speed Sensor

Body Style: 90-Degree

Connector: DIN 2-Pin Barrel Sealed (Socket)

Harness Length: 75.5" (1919mm)

Sensor Resistance: 1,500-2,000 Ohms (room temperature)

Sensor Body OD: 0.627"

Max Sensor-to-Exciter Gap: 0.015"

Ingress Protection: IPX9K

Max Operating Temperature: 320°F (160°C)

Min Operating Temperature: -40°F (-40°C)

Includes: Clamping Sleeve (p/n 5012878), Grease

Compatible With: All Previous Bendix WS Series Wheel Speed Sensors

Cross References: K1812565, 060-K181265, 801538, 300084, 065703, 300084N, 5001064, 5009349, 550387, 800110, 745-801538, TWDBEN801538, BX801538, S-22908, S22908, S-22889-14, S2288914, 356-S2288914, K144020BX
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
