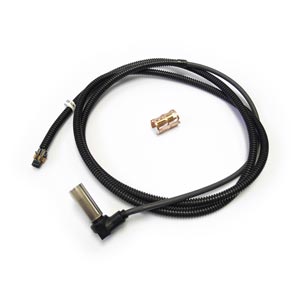

Bendix 801566 WS-24 ABS Wheel Speed Sensor, 90-Degree, 75" Harness, Metri-Pack 150.2, w/Sleeve Part Number: 060-801566

Not Yet Rated | Write the First Review

The Bendix 801566 is a WS-24 antilock brake wheel speed sensor with a 90-degree body and Metri-Pack 150.2 Series 2-way sealed female connector. The WS-24 is an electromagnetic sensor that works with an exciter ring to generate an AC signal for the ABS controller. Sensor resistance at room temperature is 1,500-2,000 ohms. Sensor body outer diameter is 0.627". Maximum sensor-to-exciter gap is 0.015". IPX9K ingress protection rated. Wire protection sleeve, clamping sleeve, and grease included. Note: WS-24 sensors require clamping sleeve p/n 5012878 — do not use previous sleeve p/n 5006849. Replaces WS-20 wheel speed sensors 065517, 065518, and 550657.

Special Notes

Replaces WS-20 wheel speed sensor numbers 065517, 065518, and 550657.

Product Description

Manufacturer: Bendix

Part Number: 801566

Series: WS-24

Function: ABS Wheel Speed Sensor

Body Style: 90-Degree

Connector: Metri-Pack 150.2 Series 2-Way Sealed (Female)

Harness Length: 75" (1905mm)

Sensor Resistance: 1,500-2,000 Ohms (room temperature)

Sensor Body OD: 0.627"

Max Sensor-to-Exciter Gap: 0.015"

Ingress Protection: IPX9K

Max Operating Temperature: 320°F (160°C)

Min Operating Temperature: -40°F (-40°C)

Includes: Wire Protection Sleeve, Clamping Sleeve (p/n 5012878), Grease

Compatible With: All Previous Bendix WS Series Wheel Speed Sensors

Replaces: WS-20 sensors 065517, 065518, 550657

Cross References: 801566, 060-801566, 0550657, 065517, 065518, 5000795, 5000796, 5004719, 5012849, 550656, 550657
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
