Bendix 801563 WS-24 ABS Wheel Speed Sensor, Straight, 60" Harness, Deutsch DTM, w/Sleeve Part Number: 060-801563

1

| Write a Review

Ratings Snapshot

5.0

out of 5

5 (1)

4 (0)

3 (0)

2 (0)

1 (0)

Would recommend this product.

100%

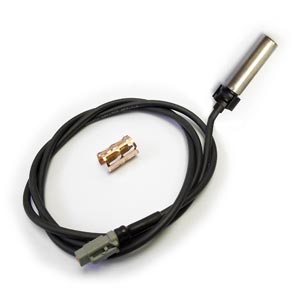

The Bendix 801563 is a WS-24 antilock brake wheel speed sensor with a straight body and Deutsch DTM Series 2-way sealed female connector. The WS-24 is an electromagnetic sensor that works with an exciter ring to generate an AC signal for the ABS controller. Sensor resistance at room temperature is 1,500-2,000 ohms. Sensor body outer diameter is 0.627". Maximum sensor-to-exciter gap is 0.015". IPX9K ingress protection rated. Clamping sleeve and grease included. Note: WS-24 sensors require clamping sleeve p/n 5012878 — do not use previous sleeve p/n 5006849.

Product Description

Manufacturer: Bendix

Part Number: 801563

Series: WS-24

Function: ABS Wheel Speed Sensor

Body Style: Straight

Connector: Deutsch DTM Series 2-Way Sealed (Female)

Harness Length: 60" (1524mm)

Sensor Resistance: 1,500-2,000 Ohms (room temperature)

Sensor Body OD: 0.627"

Max Sensor-to-Exciter Gap: 0.015"

Ingress Protection: IPX9K

Max Operating Temperature: 320°F (160°C)

Min Operating Temperature: -40°F (-40°C)

Includes: Clamping Sleeve (p/n 5012878), Grease

Compatible With: All Previous Bendix WS Series Wheel Speed Sensors

Cross References: 801563, 5001325, 5001694, 5003067, 5004084, 5005223, 5005225, 5005706, 5006177, 5012846, 800160, 800197, 800306, 800343, 800542, 800544, 800592, 800614, F81Z2B372CA
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Bendix WS-24 Service Data Sheet
