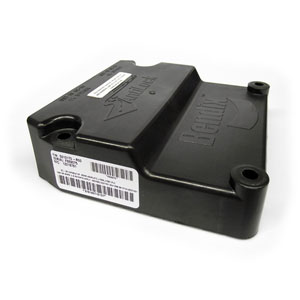

Bendix 801236 EC‑30 ABS ECU, Standard 4‑Sensor Air Brake Controller Part Number: 060-801236

Not Yet Rated | Write the First Review

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 801236

Condition: New

Direct service replacement for EC‑16™ and EC‑17™ controllers

ABS Configuration: 4‑sensor system

Controls up to four ABS modulator valves

Traction Control (ATC): Not supported on standard EC‑30 models

Engine Communication: J1939 diagnostic link

PLC Trailer ABS Lamp Support: Not included on standard models

Integrated LED diagnostic display with blink‑code capability

Includes mounting hardware and installation instructions

The Bendix® EC‑30™ ABS Electronic Control Unit is the standard‑configuration controller used in heavy‑duty trucks, tractors, and buses equipped with pneumatic braking systems. It manages the vehicle’s ABS function by monitoring wheel speed and controlling up to four ABS modulator valves to optimize wheel slip, improve stability, and maintain steering control during braking.

This standard EC‑30™ model supports 4‑sensor ABS configurations, provides a simplified ABS warning‑lamp power‑up sequence, and includes a built‑in LED diagnostic display for quick troubleshooting. The rugged epoxy‑potted enclosure protects the electronics from vibration, moisture, and electromagnetic interference, making it a reliable service replacement for earlier EC‑16™ and EC‑17™ controllers.

Cross References: 801236, 060-801236, 5010170, 5010170-R00, BW 801236, BW801236, 745-801236, TWDBEN801236, BEN801236, BAN801236, BX801236, ZAC801236, 801236BXW, 85103787
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Bendix EC-30 Service Data Sheet (.pdf)
