Bendix 800647 E‑8P Foot Valve, 5/8" & 3/8" PTC Supply, 3/8" NPT Aux, 1/2" & 3/8" PTC Delivery Part Number: 060-800647

Not Yet Rated | Write the First Review

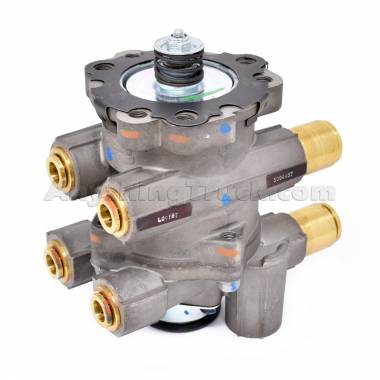

The Bendix E‑8P foot valve (800647) is a dual‑circuit treadle valve with mixed‑size push‑to‑connect supply and delivery ports. It includes 3/8" and 5/8" PTC supply ports, a 3/8" NPT auxiliary supply port, and a delivery configuration with both 1/2" and 3/8" PTC ports. This model does not include a treadle, mounting plate, or boot.

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 800647

Condition: New

Valve Type: E‑8P Dual‑Circuit Foot Valve

Supply Ports (11): 3/8" PTC (1), 5/8" PTC (1)

Supply Ports (12): 3/8" PTC (1), 5/8" PTC (1)

Auxiliary Supply Port: 3/8" NPT

Delivery Ports (21): 1/2" PTC (1), 3/8" PTC (1)

Delivery Ports (22): 1/2" PTC (2)

Exhaust Port: Dust shield

Port Configuration: Parallel

Differential Pressure: 3.0 PSI

Graduation Spring: Rubber spring

Regulatory Compliance: FMVSS 121

Mounting (Valve Body): 5/16‑18 UNC‑3B (3x)

Mounting Plate Included: No

Rubber Boot Included: No

Pedal Included: No

BVA‑85 Included: No

Retarder Included: No

Waterproof: No

The Bendix® E‑8P® foot valve is a dual‑circuit, treadle‑operated service brake valve that provides graduated control of both primary and secondary brake circuits. As described in the Bendix service data sheet, the E‑8P uses a rubber spring (27) in the primary piston assembly and operates with a common exhaust protected by an exhaust diaphragm.

The E‑8P is the standard configuration used on a wide range of trucks and tractors and is a direct functional replacement for older Bendix E‑12 valves.

Cross References: 800647, 060-800647, 5006167, 5006960, 745-800647, TWDBEN800647, 2506079C91, BEN800647, BAN800647, BX800647, ZAC800647, 800647BXW, BW 800647, BW800647
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
