Bendix 800629 E‑8P Foot Valve, 3/8" NPT Supply Ports, 3/8" NPT Aux Supply, 3/8" NPT Delivery Part Number: 060-800629BEN

Not Yet Rated | Write the First Review

This Bendix E‑8P foot valve (800629) is the standard dual‑circuit treadle valve used for primary and secondary service brake control. It features 3/8" NPT supply and delivery ports in a parallel configuration and uses a rubber graduation spring as specified for the E‑8P design.

Special Notes

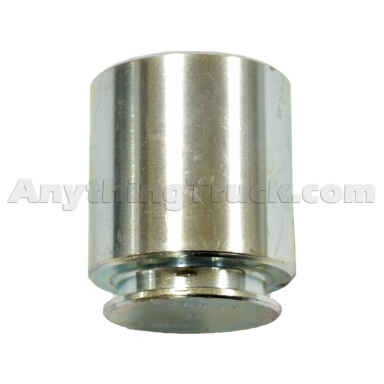

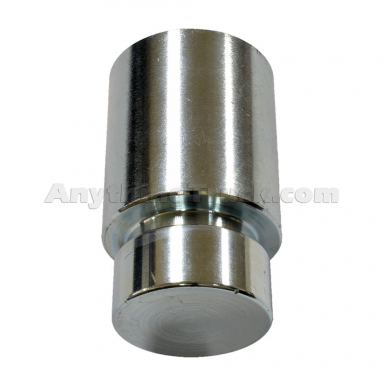

Replaces obsolete Bendix E‑12 valves 065313 and 800583. A new treadle plunger is usually required when upgrading from an E‑12.

Product Description

Manufacturer: Bendix

Part Number: 800629

Condition: New

Valve Type: E‑8P Dual‑Circuit Foot Valve

Primary Supply Ports: 3/8" NPT (2)

Secondary Supply Ports: 3/8" NPT (3)

Primary Delivery Ports: 3/8" NPT (2)

Secondary Delivery Ports: 3/8" NPT (2)

Auxiliary Supply Port: 3/8" NPT

Exhaust Port: Dust shield

Port Configuration: Parallel

Differential Pressure: 3.0 PSI

Graduation Spring: Rubber spring (E‑8P design)

Regulatory Compliance: FMVSS 121

Mounting Holes (Valve Body): 5/16‑18 UNC‑3B (3x)

Mounting Plate Included: No

Rubber Boot Included: No

Pedal Included: No

BVA‑85 Included: No

Retarder Included: No

Waterproof: No

The Bendix® E‑8P® foot valve is a dual‑circuit, treadle‑operated service brake valve that provides graduated control of both primary and secondary brake circuits. As described in the Bendix service data sheet, the E‑8P uses a rubber spring (27) in the primary piston assembly and operates with a common exhaust protected by an exhaust diaphragm.

The E‑8P is the standard configuration used on a wide range of trucks and tractors and is a direct functional replacement for older Bendix E‑12 valves.

Cross References: 800629, 060-800629, 060-800629BEN, 065313, AV800629, FS800629N, BW 800629, BW800629, ACA-0496E700, 65313X, H800629, K800629, 745-065313, 745-108369, 745-800629, R955800629N, WA800629, TWDBEN800629, BEN800629, 2504432C91, BAN800629, BX800629, ZAC800629, S-E694, SE694, 800629BXW, BX 800629, BX800629, TLA800629, 3095546, 5006208, 106472, 106474, 106892, 107252, 107482, 107483, 107484, 107486, 107564, 107573, 107574, 107575, 107576, 107577, 107596, 107597, 107598, 107599, 107600, 107601, 107602, 107718, 107719, 107720, 107721, 107722, 107841, 108333, 108391, 108402, 108403, 5005787, 5005788, 5005890, 5006173, 5006174, 5006175, 5006176, 5006198, 5006204, 5006210, 5006214, 5006730, 5007813, 5012236, 5015815, K026598, K032137, 065130, 5006176N, 800628, 800774, K105817
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
