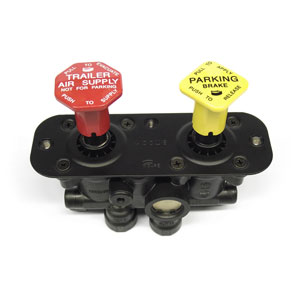

Bendix 800527 MV-3 Control Module, 1/4" NPT Ports, Metric Mounting Holes (Special Order) Part Number: 060-800527

Not Yet Rated | Write the First Review

This is a special order item with an estimated lead time of 2-3 weeks before it ships, and we'll contact you with a verified lead time after you place an order.

Please call, email, or chat for a definite lead time if you're in a hurry.

This MV‑3 variant (Bendix 800527) features 1/4"-18 NPT supply and delivery ports along with an M6 x 1‑6H threaded three‑hole mounting pattern. The Supply 12 port is factory‑plugged, matching the configuration used on certain OEM dash panels. This model is a special‑order MV‑3 variant and is built with the non‑metallic, corrosion‑resistant valve body specified by Bendix.

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 800527

Condition: New

Supply 11 Port: 1/4"-18 NPT

Supply 12 Port: 1/4"-18 NPT (Plugged)

Delivery 21 Port: 1/4"-18 NPT

Delivery 22 Port: 1/4"-18 NPT

Exhaust Port: 1/4"-18 NPT

Auxiliary Port: None

Mounting Holes: M6 x 1‑6H threaded (3x)

Tractor Trip Pressure: 30 ± 10 PSI

Trailer Trip Pressure: 35 ± 10 PSI

Trailer Override Pressure: 25 ± 5 PSI

Button(s) Included: Yes

The Bendix MV-3 Dash Control Module is a dual-button, push-pull valve that controls the tractor and trailer parking brake circuits from a single dash-mounted assembly. It consolidates tractor protection, trailer supply, and system park functions into one compact unit, replacing any existing two- or three-valve push-pull system with reduced plumbing complexity.

The MV-3 uses an integrated dual-circuit supply check valve to manage both primary and secondary reservoir connections, providing automatic trailer brake application if supply pressure drops to approximately 20-45 PSI, with a non-override trip piston activating at 20 PSI. The non-metallic, non-corrosive valve body has all air connections at the rear, with an optional auxiliary port available on select configurations.

Cross References: 800527, 060-800527, 065496, 109325, 5005066, 65496
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
