Bendix 800034 PP-DC Control Valve, 1/4" NPT Ports, 1/4"-20 Mounting Holes Part Number: 060-800034

Not Yet Rated | Write the First Review

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 800034

Condition: New

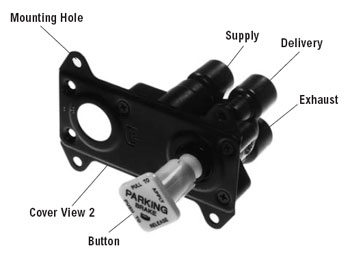

PP-DC Dash Valve

Ports: 1/4" NPT

Mounting Holes: 1/4"-20

Mounting Hole Spacing: 3" x 4.22"

The PP-DC park control double check valve is a push-pull, manually operable on/off valve with an integral double check. It is dashboard mounted and provides in-cab control of truck or bus parking brakes. Manually pushing or pulling the button will release or apply the parking brakes. The integral double check valve allows the PP-DC valve to receive supply air pressure from either, or both, the front or rear axle service reservoirs.

The valve is pressure sensitive and automatically moves from the applied (over the road position) to the exhaust position (thus applying the parking brakes) if total system pressure (both front and rear axle reservoirs) drops below 20 to 30 psi.

Cross References: 800034, 060-800034, 5000360, 5000359, 5000395
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
