Bendix 281946N PP-5 Push Pull Valve, 40 PSI Automatic Release Pressure Part Number: 060-281946N

Not Yet Rated | Write the First Review

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 281946N

Condition: New

Supply Port: 1/8" NPT

Delivery Ports: 1/8" NPT (2)

Pilot Air Inlet: 1/8" NPT

Automatic Release Pressure: 40 psi

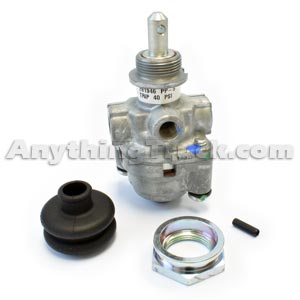

Includes valve, nut, boot, and rolled pin

The PP-5 push pull control valve is a pressure sensitive, on - off control valve. It is used in conjunction with vehicle torque converter systems, engine speed control systems and some parking brake systems. In addition to automatic exhaust and manual control, the PP-5 valve employs a pilot air release feature (interlock) which will allow the valve to be exhausted by applying a low pressure signal from another control valve to the PP-5 control port.

Cross References: 281946, 065533, 65533, 281946X, 20QE3356, R955281946, 36Q483, 52150604, K281946, 1692996C91, ZAC281946, LPP-5681, S-10129, 401180, 3918701, 281946RX, 070-281946RX
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
