- Special Notes
- Product Description
- Manufacturer: Bendix
- Part Number: 278615N
- Condition: New

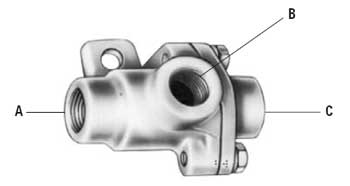

- Port A size = 1/4" pipe thread
- Port B size = 1/4" pipe thread
- Port C size = 1/4" pipe thread
A double check valve is used in the air system when a single function or component must receive air from, or be controlled by, the higher of two sources of pressure. An internal disc or shuttle moves in response to the higher air pressure and allows that air source to flow out of the delivery port. It is recommended that double check valves be mounted so that the shuttle (or disc) operates horizontally.
Cross References: 278615, 3081439, 1779P1005, 275858, 285543, 288334, 118914, 107928, S1177726, 6D3781, 2558147, M6001213, 350180, BW 278615, 2485247, 532187, GTA278615, 78037062, 86683301, KN25060, H278615m 31A1812, 335357, 81277, K29520004, 20396450000, 36Z1090D1, 36Z763, 13AV4000, S-16923, 2485247, 3081439, 724040012
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
