OE Quality Sprague Wiper Motors

Application Guide

International
Mid 2007-Current 9200, 9400, 9900, 5500, 5900 (3-Bolt) - Use P/N E-008-224
2005-2007 9200, 9400, 9900, 5500, 5900, Paystar (4-Bolt)
Use P/N E-008-224 and GS-4920 Mounting Bracket
Pre-2005 9200, 9400, 9900, 5500, 5900

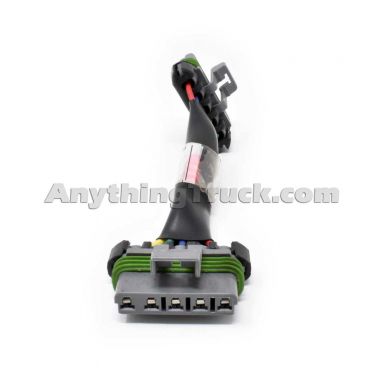

Use P/N E-008-224 and E-007-099 Adapter Harness

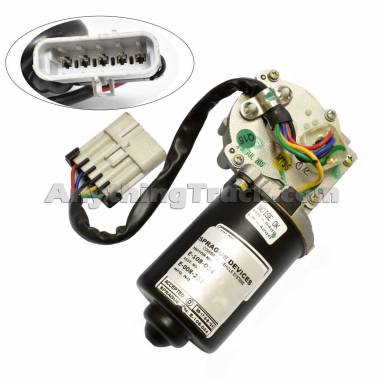

1999-Current 4000, 8000, 7000 Series (TerraStar, DuraStar, WorkStar) - Use P/N E-008-221
2007-Current ProStar, LoneStar, TranStar - Use P/N E-008-221
Freightliner
2000-Current Columbia, Century, Coronado, Cascadia - Use P/N E-008-221

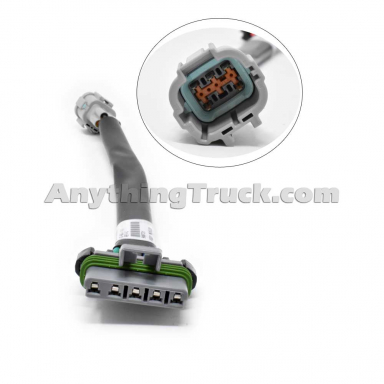

2001-Current M2 - Use P/N E-008-221 and E-007-101 Adapter Harness
Western Star
2005-Current All Models - Use P/N E-008-223
2000-2005 All Models - Use P/N E-008-223
*Requires drilling holes in bracket to mount
Peterbilt
1985-Current 379, 330, 389, 337, 348, 340, 335, 386, 385 - Use P/N E-008-222
All 387 & 587 - Use P/N E-008-224 and E-007-100 Adapter Harness
Kenworth
2010-Current C500, T300, T400, T450, T600, T800, W900 (3-Bolt) - Use P/N E-008-224

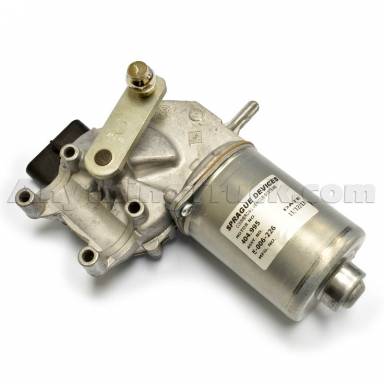

2006-2009/2010 C500, T300, T400, T450, T600, T800, W900 (4-Bolt) - Use P/N E-006-226
1987-Mid 2006 C500, T300, T400, T450, T600, T800, W900 (3-Bolt) - Use P/N E-008-223
All T2000 & T700 - Use P/N E008224 and E-007-100 Adapter Harness
Volvo

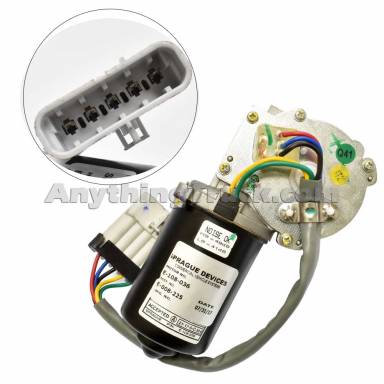

All VN Series - Use P/N E-008-225
Mack

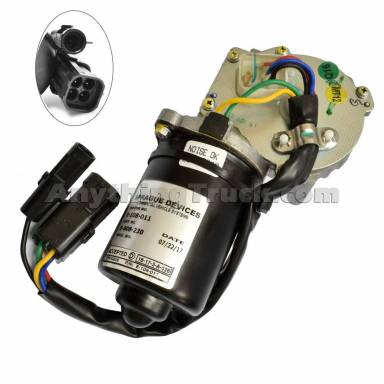

1988-Current C & CH, Fusion, Vision, Granite, Pinnacle, Titan - Use P/N E-008-230
1994-Current LE Low Entry Waste Refuse - Use P/N E-008-223
All RD - Use P/N E-008-223
*Requires bracket modification
