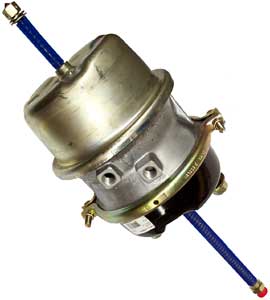

Long Stroke Haldex Life Seal 3030 Spring Brake Assy

    Long Stroke Haldex Life Seal 3030 Spring Brake Assy

    Code: 030-LC3030L
    Not Yet Rated | Write the First Review
    Qty in Stock: Out of Stock
    Quantity in Stock reflects available inventory as of 5:00 AM CST.
    $139.55
    Quantity:


    Special Notes
    none
    Product Description
    Complete "long stroke" service and spring brake assembly
    Type 30 spring brake chamber
    Type 30 service brake chamber
    Available Stroke: 3.0"
    Emergency spring chamber is completely sealed
    Cage bolt integrated into spring housing
    Guided pressure plate / compression spring design
    Zinc plated spring chamber
    Spring chamber permanently attached for safety
    Haldex Life Seal Spring Brake Schematic
    Combination Spring Brake Specifications
    A: 9.8" (Length of chamber from face of stud housing to the end of the spring housing)
    B: 7.2" (Length of Piggyback center body to end of spring housing)
    C: 6.6" (Spring housing dimension)
    D: 8.3" (Dimension at rolled seal)
    E: 9.2" (Dimension of service clamp band)
    F: 7.8" (Dimension of service diaphragm)
    G: 4.75" (Stud spacing)
    J: 10.00" (Face of stud housing to the tip of the service push rod)
