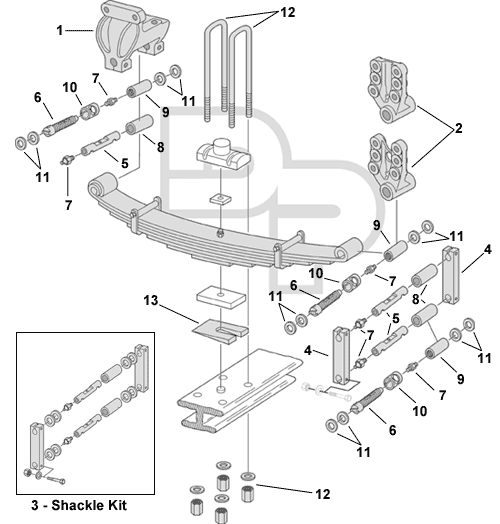

Freightliner FLC112 Series Conventional
Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front 2 Various
2 N/A Hanger, Shackle; 4 Bolt 2 6813200470 Casting No. 6813220703; 4 Frame Bolts
2 N/A Hanger, Shackle; 6 Bolt 2 6813201570 Casting No. 6813220703; 6 Frame Bolts
2 N/A Hanger, Shackle; TB73 Bushing 2 6813201370 Casting No. 6813220903; 6 Frame Bolts
2 N/A Hanger, Shackle; 6 Bolt 2 6813203670 Casting No. 6813220903
3 330195 Shackle Kit 2   Inludes 3310143, 327454, PLK and Hardware
4 330143 Side Bar
6-11/16" L x 4-1/8" C to C
1" Thick
1-1/8" Pin Holes 		4 6813220020
6813220120		 Use w/327454 Pins
4 330194 Side Bar
6-11/16" L x 4-1/8" C to C
1" Thick
1-1/4" Pin Holes 		4 6813220220
6813220320		 Use w/327487 and 327490 Pins
4 330123 Side Bar
7-3/4" L x 5-5/16" C to C
1" Thick
1-1/4" Pin Holes 		4 16-11890-000
5 327454 Spring Pin;
1-1/8" OD x 6-15/16" L
5-3/8" C to C 		1/6 6813220522
6813220022
5 327487 Spring Pin;
1-1/4" OD x 6-7/8" L
5-3/8" C to C 		6 16-13470-000
16-12373-000		 Use w/4" Spring and RNK or TNK Bushing
5 N/A Spring Pin;
1-1/4" OD x 6-7/8" L
5-3/8" C to C 		6 16-13470-000 Use 327487
5 N/A Spring Pin;
1-1/4" OD x 6-5/8" L
5-3/8" C to C 		6 16-13079-000 Use 327487
6 327490 Spring Pin; Threaded
1-1/4"-7 x 7.14" L
5-3/8" C to C 		6 16-12302-000 Used w/ TB-73 Bushing
7 334475 Fitting, Grease Zerk
1/8"-27NPT		 6 1613B
8 PLK Bushing
1-1/8" ID x 1-3/8" OD x 4" L 		6 6813220250
8 322100 Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD x 4" L 		4 16-12399-001
6813220150
9 TB73 Bushing, Threaded
1-1/2" OD x 4" L
1-1/4"-7 Thread 		6 16-12301-000
10 3341583 Sleeve
1-14" OD x 1" ID x 1" L 		4 16-09598-000
11 3341584 Shim
1-1/4" OD x 1/32" Thick
1-1/4" Hole 		A/R 23-09860-012
11 3341585 Shim
1-7/8" OD x 5/32" Thick
1-1/4" Hole 		A/R 23-11656-018
12 361208 U-Bolt Kit;
Special Bend, Grade 8 		4 6813220425 7/8" x 4" x 11" HS Includes nuts and washers
13   Aluminum Wedge
